SMD1808 Flexible Strips 280LEDs/m
SMD1808 Flexible Strips 280LEDs/m
Detail

Product Features:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

SMD1808 CRI>95 flexible LED strips have very good color consistency and we only provide one bin for every shipment, and SDCM is less 3 steps. R9>90,full color temperature ranges are available.


◆ SMD1808 CRI>95 LED adopt pure copper strong LED frame, pure gold encapsulation, can reduce the LED damage in different applications.


◆ SMD1808 CRI>95 LED has small size 1.8*0.8mm,smaller than the present popular SMD2210,2216.

◆ High density LED quantities, no lighting spot, can make maximum 720leds/meter for single row.


◆  SMD1808 CRI>95 LED are very suitable for the narrow PCB, our most narrow PCB can make 2mm.

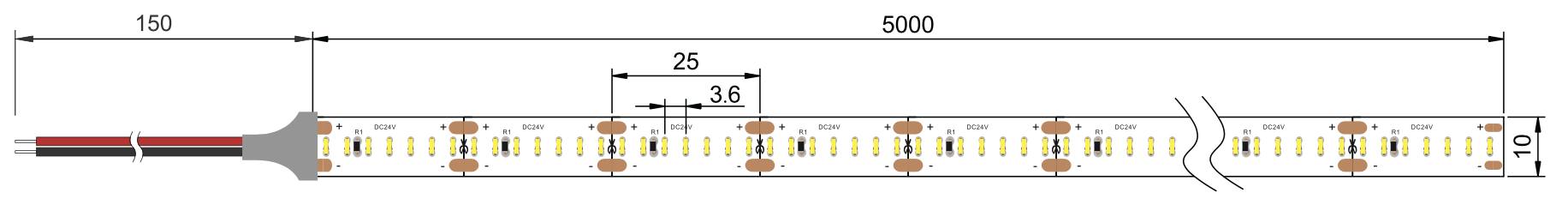

Dimensions:
------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Parameters:

------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

Model No.                             KL-LS2810-1808-XXLEDs/m280LEDs
Input Voltage24VSMD Type
SMD1808
Power/m19.2WWorking hours50,000hrs
Max Current / LED20mAWorking Temperature-25℃ ~ 45℃
CRI (Ra)>90Cuttable Length25mm
Beam Angle120°PCB Width10mm


CCT2500K2700K3000K3500K4000K5000K6000K
Lumen/m>1760LM

>1770LM

>2030LM>2040LM>2100LM>2110LM>2130LM


SMD1808 Flexible Strips 280LEDs/m
