LED CCT Controller
LED CCT Controller
Detail

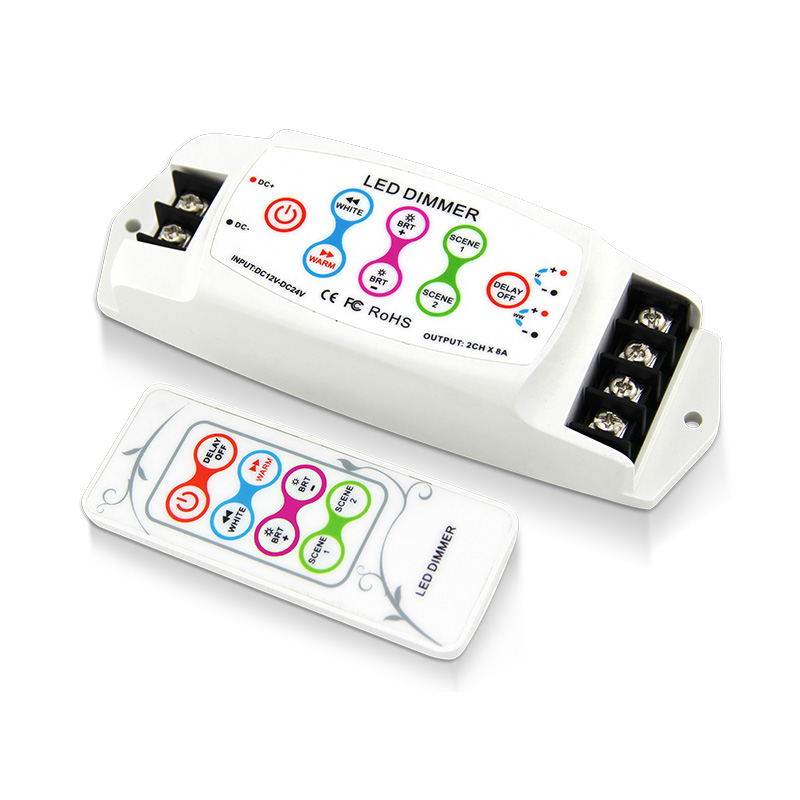

  This series LED color-temperature controller is a universal high-performance color-temperature controller, which adopted the most advanced PWM (Pulse-Width Modulation) digital brightness-adjusting. Changing the color temperature by adjusting two different light colors, it suits for all 2 channel LED lights.

Product Features:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.

 Real 0~100% brightness adjust, 4096 scale levels. Lamplight soft and stable, without flicker, precisely control color temperatures

 Max 8A*2CH output. Working with power repeater to expand power output unlimitedly.

 2 DIY modes, easy to replay your favorite settings

 Soft touch button with friendly experience.

 Power loss memory function.

Product Parameter:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Model

 KL-CCT-310

KL-CCT-310RF

 Input Voltage

 DC5V-DC24V

 DC12V-DC24V

 Max Current Load

 8A/CH×2

 8A/CH×2

 Max Output Power

 80W(5V)/192W(12V)/384W(24V)

 192W(12V)/384W(24V)

 Scale Levels

 4096 LEVEL /CH×2

 4096 LEVEL /CH×2

 Product Dimension

 L165xW56xH36 (mm)

 L165xW56xH36 (mm)

 Package Dimension

 L170×W49×H49(mm)

 L170×W49×H49(mm)

 Weight (G.W)

 160g

 190g

 Remote Control Distance

 No

 30m with block;   60m without block
