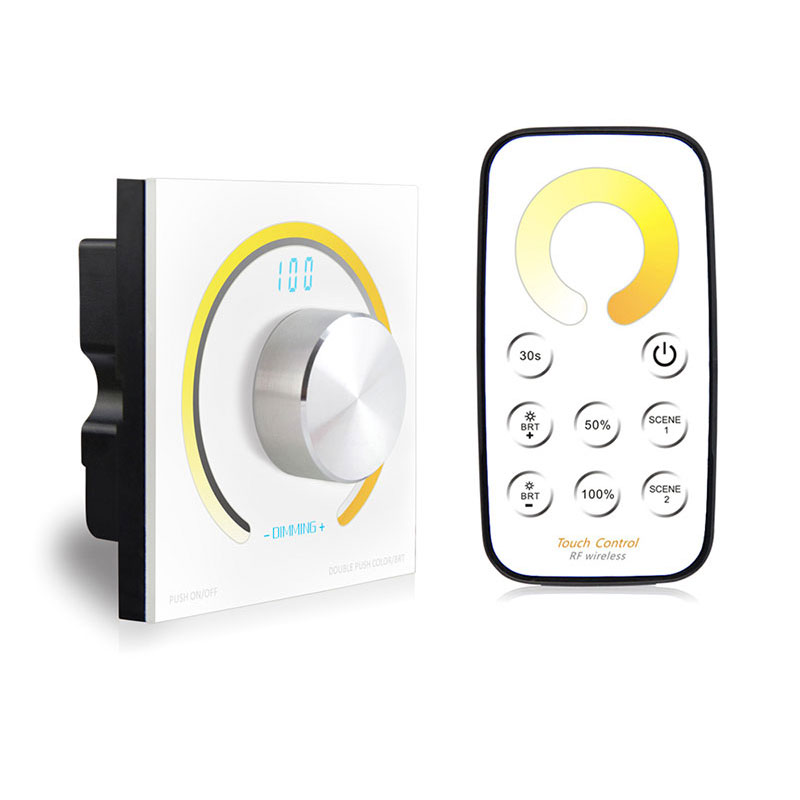

LED CCT Controller with Touch Panel & Rotary Knob
LED CCT Controller with Touch Panel & Rotary Knob
Detail

This Product series with rotary knob is widely used for commercial /office/household lighting ,workable for dimming, color temperature, RGB control .with digital display ,display status is clear when at a glance .It compatible with our T1,T2,T3 wireless remote control , realize remote control function, thus can meet demand of various occasions.

Product Features:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Automatically adapt to LED light which works from DC12V-24V.

 Fashionable appearance, simple operation, standard 86 style socket, easy to install and disassemble.

 Workable for dimming, color temperature, RGB control.

 2048 grey scales per channel, led lamp is more rich and vivid without flash.

 Optional output frequency 0.5K、1K、2K、4K、8K.

◆ Three-digital-display indicates the current setting value, easy operation, the default parameter can be restored by manual.

◆ Can compatible with T series wireless remote control in long distance.

◆ Using Encoder rotary knob, instead of potentiometer, more durable.

Product Parameter:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Model

 KL-CCT-KS

 Input Voltage

 DC12V-24V

 Load Current

 4A×2CH Max 8A

 Optional output frequency

 0.5K、1K、2K、4K、8K

 Grey Scale Level

 2048×2

 Max Output Power

 96W(12V)/192W(24V)

 Working Temperature

 -20°C~55°C

 Dimensions

 L86×W86×H50(mm)

 Weight(N.W)

 130g


 Model

 KL-CCT-KS(T2)

 Input Voltage

 3V(CR2032)

 Working Frequency

 433.92MHZ

 Remote Distance

 30M

 Working Temperature

 -20°C~55°C

 Dimensions

 L106×W56×H9(mm)

 Weight(N.W)

 40g
