RGBW LED Controller
RGBW LED Controller
Detail

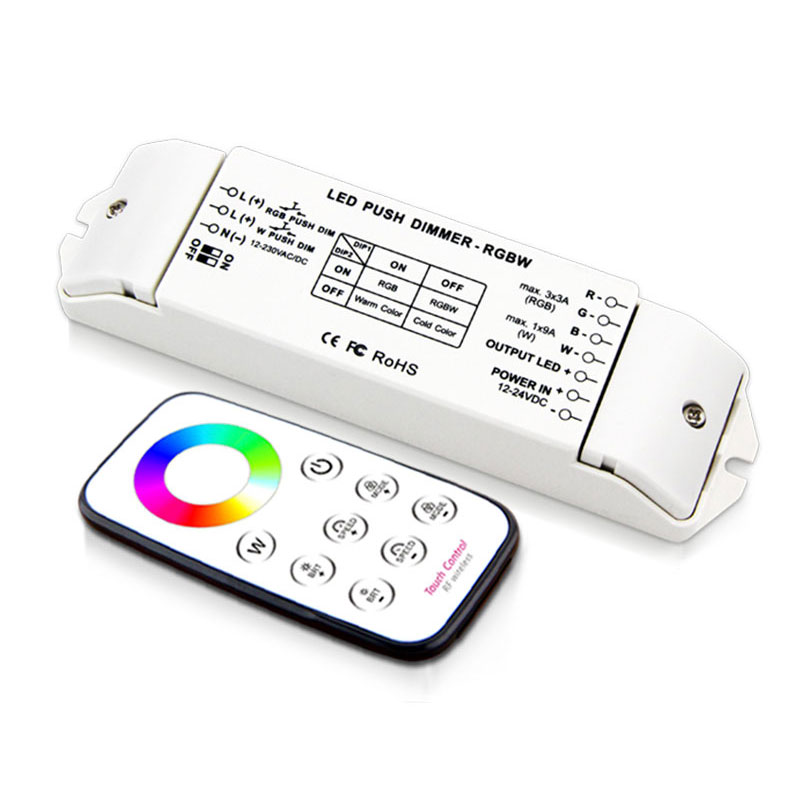

The RGBW controller adopts to PWM(Pulse-Width Modulation)digital brightness control technology. Users can choose their favorite dynamic color change tone by two DIP switch. Meanwhile It can be controlled by the wireless touch remote control and duplex push dim button. This led controller is suitable for RGB & RGBW LED lamp, easy to use.


Product Features:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Automatically adapts to DC12V-24V.

 4 output channels, each channel 4096 grey scale, Lamplight soft and stable, without flicker

 4 dynamic color tune selectable.

 Save parameter automaticauy.

 Over current protection, short circuit protection.


Product Parameter:

--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

 Model

KL-RGBW-420

 Working voltage

 DC12V-24V

 Max output current

 RGB: 3A×3CH W: 9A×1CH

 Max output power

 RGB:36W×3CH W:108W(12V) /                                             RGB:72W×3CH W:216W(24V)

 Grey scale

 4096 levels×4

 Work temp

 -20-55℃

 Dimension

 L176×W46×H30(mm)

 Weight (G.W)

 145g



 Model

KL-RGBW-420RF

 Working voltage

 DC12V-24V

 Working frequency

 433.92MHz

 Remote distance

 40m-50m

 Work temp

 -20-55℃

 Dimension

 L106×W56×H9(mm)

 Weight (G.W)

 40g
